Code Reproducibility

Code Reproducibility#

import numpy as np
from graphbook_code import heatmap

def generate_unit_circle(radius):
    diameter = 2*radius + 1
    rx = ry = diameter/2
    x, y = np.indices((diameter, diameter))

    circle_dist = np.hypot(rx - x, ry - y)
    diff_from_radius = np.abs(circle_dist - radius)
    less_than_half = diff_from_radius < 0.5

    return less_than_half.astype(int)

def add_smile():
    canvas = np.zeros((51, 51))
    canvas[2:45, 2:45] = generate_unit_circle(21)
    mask = np.zeros((51, 51), dtype=bool)
    mask[np.triu_indices_from(mask)] = True
    upper_left = np.rot90(mask)
    canvas[upper_left] = 0
    return canvas

def smile_probability(upper_p, lower_p):
    smiley = add_smile()
    P = generate_unit_circle(25)
    P[5:16, 25:36] = generate_unit_circle(5)
    P[smiley != 0] = smiley[smiley != 0]

    mask = np.zeros((51, 51), dtype=bool)
    mask[np.triu_indices_from(mask)] = True
    P[~mask] = 0
    # symmetrize the probability matrix
    P = (P + P.T - np.diag(np.diag(P))).astype(float)
    P[P == 1] = lower_p
    P[P == 0] = upper_p
    return P

P = smile_probability(.95, 0.05)

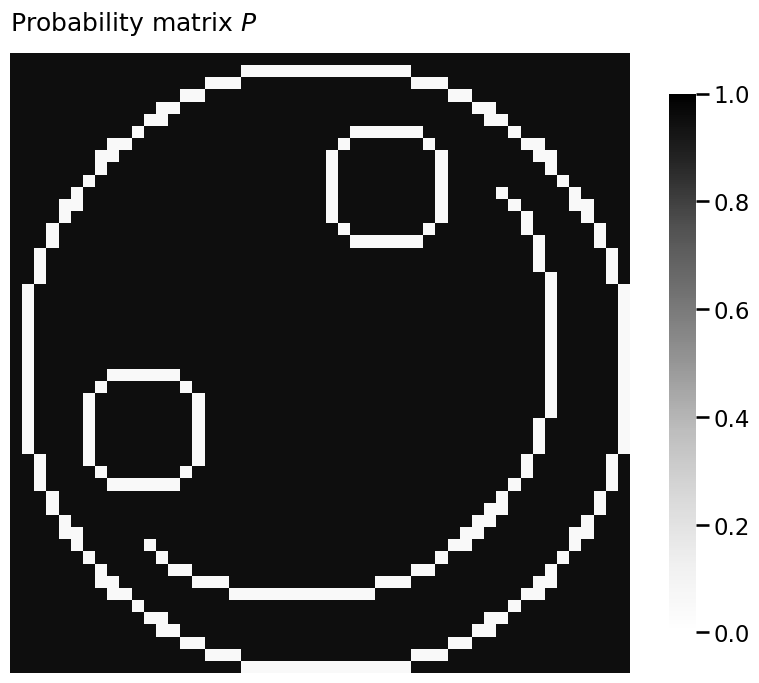

heatmap(P, vmin=0, vmax=1, title="Probability matrix $P$")
<Axes: title={'left': 'Probability matrix $P$'}>
../../_images/9875ae3f947e93c641c9cea69722a058c93390ce37b0c6de07c2b3a75dd05209.png
from graspologic.simulations import sample_edges

A = sample_edges(P, directed=False, loops=False)

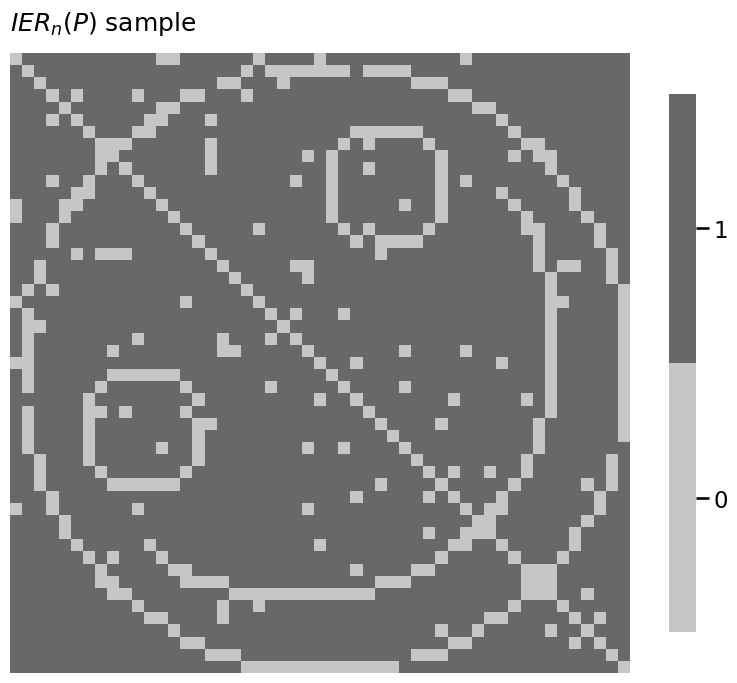

heatmap(A.astype(int), title="$IER_n(P)$ sample")
<Axes: title={'left': '$IER_n(P)$ sample'}>
../../_images/b1637d4ca6b2f1954efe515bbcff18cca56c3ff6d13851245b60d2cb86ac46a2.png
import numpy as np
from math import comb

node_count = np.arange(2, 51)
log_unique_network_count = np.array([comb(n, 2) for n in node_count])*np.log10(2)
from graphbook_code import draw_multiplot
from graspologic.simulations import er_np

n = 50  # network with 50 nodes
p = 0.3  # probability of an edge existing is .3

# sample a single simple adjacency matrix from ER(50, .3)
A = er_np(n=n, p=p, directed=False, loops=False)

# and plot it

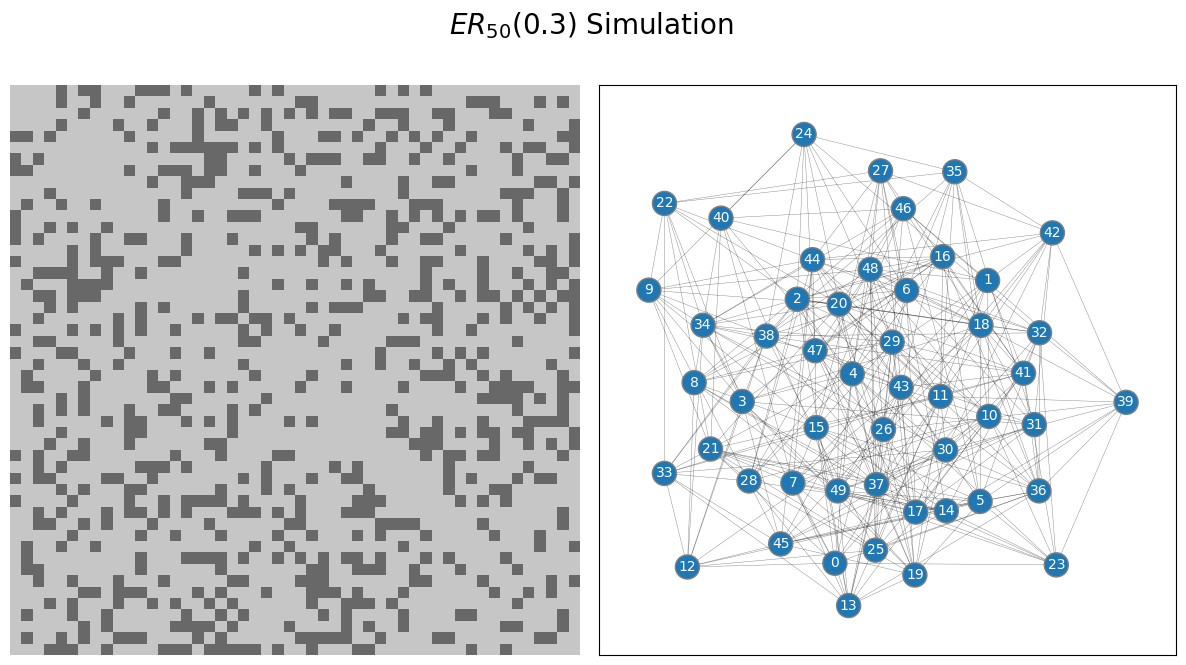

draw_multiplot(A.astype(int), title="$ER_{50}(0.3)$ Simulation")
array([<Axes: >, <Axes: >], dtype=object)
../../_images/f3aa3cc5517d83d61eda0d6898234ffeb7b8e9243ef8ee6a6faa2da09d50217d.png
p = 0.7  # network has an edge probability of 0.7

# sample a single adjacency matrix from ER(50, 0.7)
A = er_np(n=n, p=p, directed=False, loops=False)
from graphbook_code import plot_vector
import numpy as np

n = 100  # number of students

# z is a column vector of 50 1s followed by 50 2s
# this vector gives the school each of the 100 students are from
z = np.repeat([1, 2], repeats=n//2)

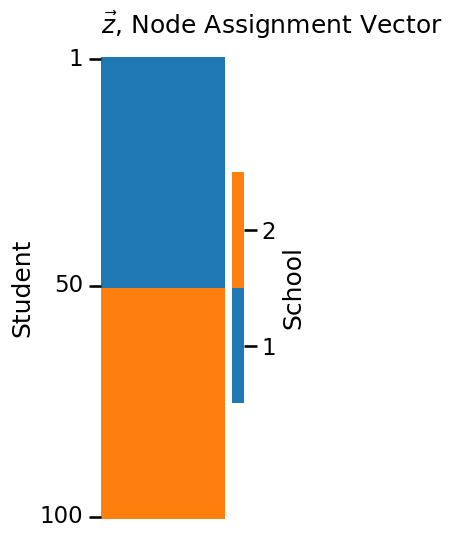

plot_vector(z, title="$\\vec z$, Node Assignment Vector",
            legend_title="School", color="qualitative",
            ticks=[0.5, 49.5, 99.5], ticklabels=[1, 50, 100],
            ticktitle="Student")
<Axes: title={'left': '$\\vec z$, Node Assignment Vector'}, ylabel='Student'>
../../_images/bfed1c520ac9e60e4a6e99296514dd8958349aab71fe5e8de4ceec168c988b33.png
from graphbook_code import heatmap

K = 2  # community count
# construct the block matrix B as described above
B = np.array([[0.6, 0.1],
              [0.1, 0.4]])

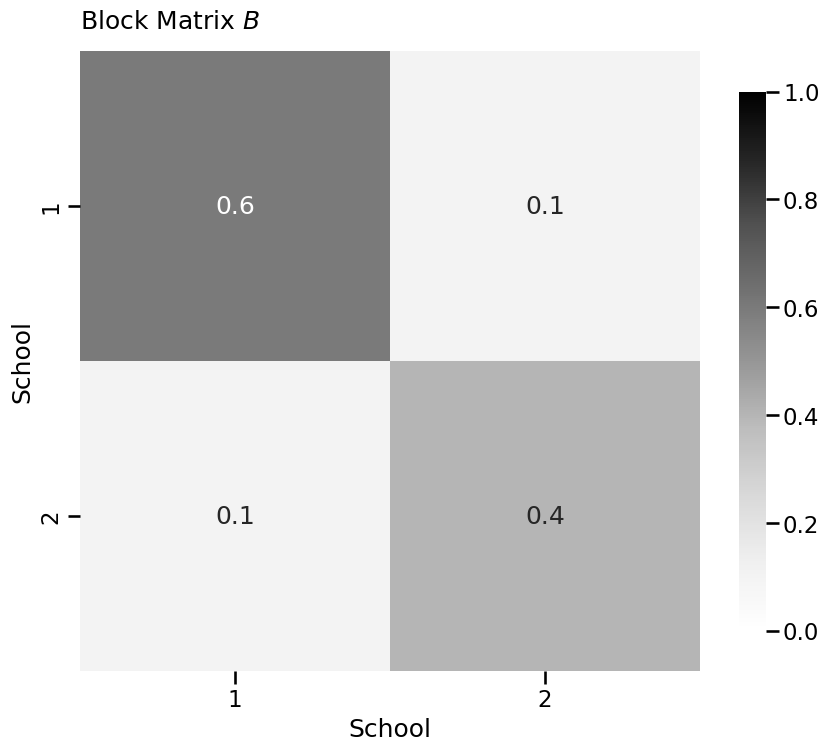

heatmap(B, xticklabels=[1, 2], yticklabels=[1,2], vmin=0,
             vmax=1, annot=True, xtitle="School",
             ytitle="School", title="Block Matrix $B$")
<Axes: title={'left': 'Block Matrix $B$'}, xlabel='School', ylabel='School'>
../../_images/b43f65752d4627d5862fc20725d479d696ce1d52fe2782b5bccf6fd34576d087.png
from graspologic.simulations import sbm
from graphbook_code import draw_multiplot

# sample a graph from SBM_{100}(tau, B)
A, labels = sbm(n=[n//2, n//2], p=B, directed=False, loops=False, return_labels=True)

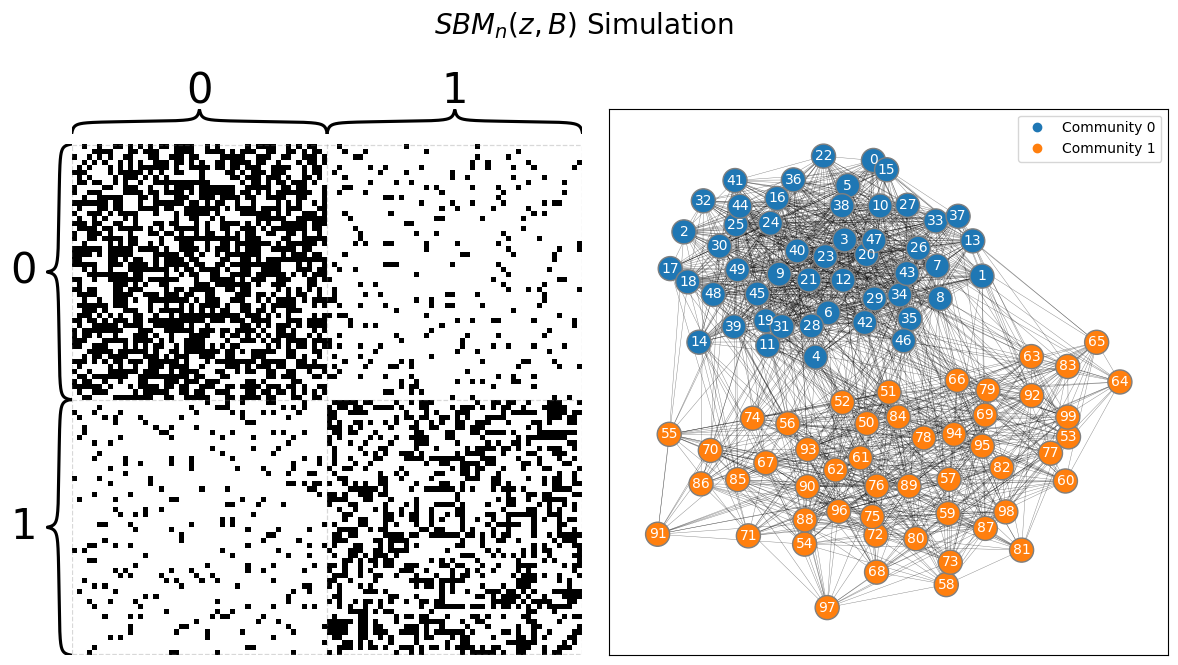

draw_multiplot(A, labels=labels, title="$SBM_n(z, B)$ Simulation");
../../_images/8e2835c4ba35cf6c3d9e7aedaba8095adc898bffb085d6724b6ecd164a1d615a.png
import numpy as np

# generate a reordering of the n nodes
permutation = np.random.choice(n, size=n, replace=False)

Aperm = A[permutation][:,permutation]
yperm = labels[permutation]

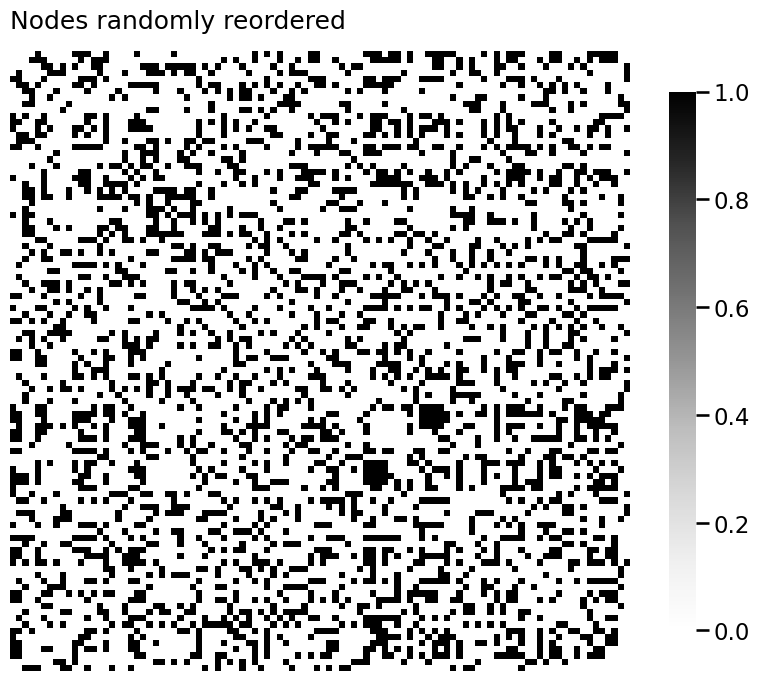

heatmap(Aperm, title="Nodes randomly reordered")
<Axes: title={'left': 'Nodes randomly reordered'}>
../../_images/8590fd7cbcd84ed533661a34cadcc85492475d63e7f541a7915eee6befc3706c.png
def ohe_comm_vec(z):
    """
    A function to generate the one-hot-encoded community
    assignment matrix from a community assignment vector.
    """
    K = len(np.unique(z))
    n = len(z)
    C = np.zeros((n, K))
    for i, zi in enumerate(z):
        C[i, zi - 1] = 1
    return C
import numpy as np
from graphbook_code import lpm_heatmap

n = 100  # the number of nodes in our network
# design the latent position matrix X according to
# the rules we laid out previously
X = np.zeros((n,2))
for i in range(0, n):
    X[i,:] = [(n - i)/n, i/n]

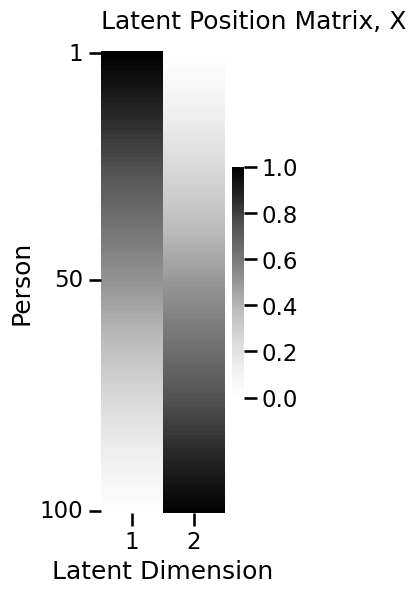

lpm_heatmap(X, ytitle="Person", xticks=[0.5, 1.5], xticklabels=[1, 2],
            yticks=[0.5, 49.5, 99.5], yticklabels=[1, 50, 100],
            xtitle="Latent Dimension", title="Latent Position Matrix, X")
<Axes: title={'left': 'Latent Position Matrix, X'}, xlabel='Latent Dimension', ylabel='Person'>
../../_images/7adebbac92ebe3a8d347f146b9ca43fe0d15abc087956209b15e1ac82aa2f465.png

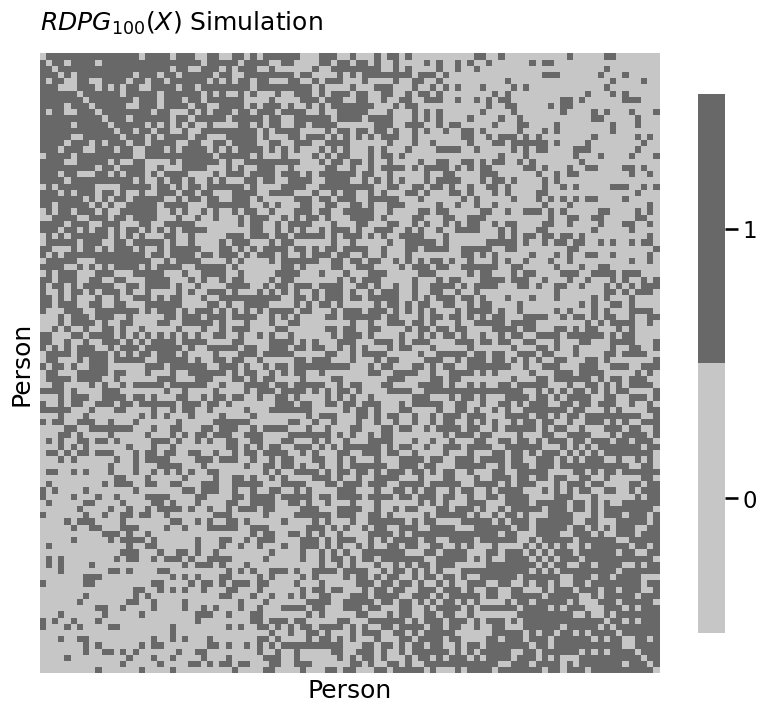

from graspologic.simulations import rdpg
from graphbook_code import heatmap

# sample an RDPG with the latent position matrix
# created above
A = rdpg(X, loops=False, directed=False)

# and plot it
heatmap(A.astype(int), xtitle="Person", ytitle="Person",
        title="$RDPG_{100}(X)$ Simulation")
<Axes: title={'left': '$RDPG_{100}(X)$ Simulation'}, xlabel='Person', ylabel='Person'>
../../_images/b956f065ca94cfab25e24db803cf8ae7d96463778fa1fe1333672e01eb775806.png
import numpy as np

def block_mtx_psd(B):
    """
    A function which indicates whether a matrix
    B is positive semidefinite.
    """
    return np.all(np.linalg.eigvals(B) >= 0)
import numpy as np
from graphbook_code import heatmap

B = np.array([[0.6, 0.2],
              [0.2, 0.4]])

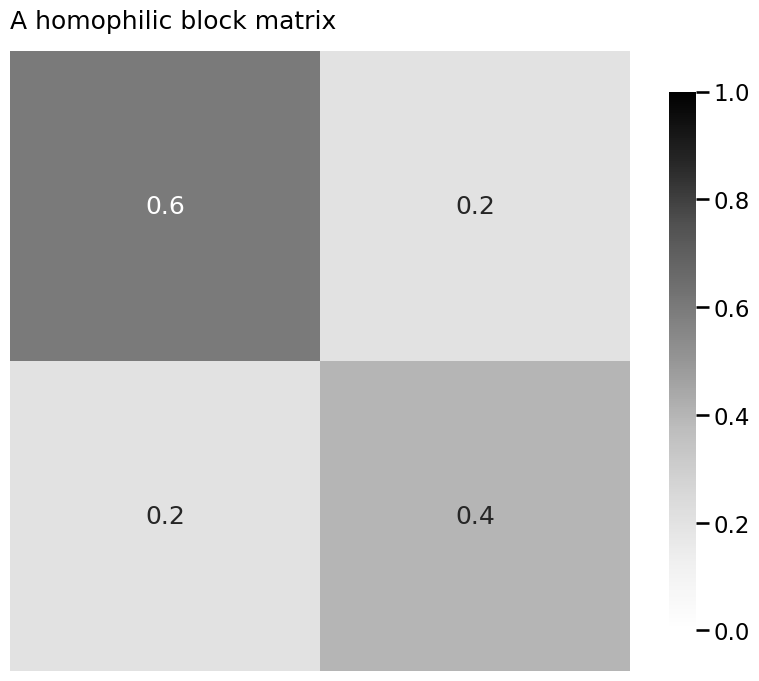

heatmap(B, title="A homophilic block matrix", annot=True, vmin=0, vmax=1)
block_mtx_psd(B)
# True
True
../../_images/3ae8b8cdfcfb4d42b60ad28d6843f6b136b23c2ec55e1bfcf71492893694ac00.png
B_indef = np.array([[.1, .2],
                    [.2, .1]])
block_mtx_psd(B_indef)
# False
False
# a positive semidefinite kidney-egg block matrix
B_psd = np.array([[.6, .2],
                  [.2, .2]])
block_mtx_psd(B_psd)
# True

# an indefinite kidney-egg block matrix
B_indef = np.array([[.1, .2],
                    [.2, .2]])
block_mtx_psd(B_indef)
#False
False
# a positive semidefinite core-periphery block matrix
B_psd = np.array([[.6, .2],
                  [.2, .1]])
block_mtx_psd(B_psd)
# True

# an indefinite core-periphery block matrix
B_indef = np.array([[.6, .2],
                    [.2, .05]])
block_mtx_psd(B_indef)
# False
False
# an indefinite disassortative block matrix
B = np.array([[.1, .5],
              [.5, .2]])
block_mtx_psd(B)
# False
False
# homophilic, and hence positive semidefinite, block matrix
B = np.array([[0.6, 0.2],
              [0.2, 0.4]])

# generate square root matrix
sqrtB = np.linalg.cholesky(B)

# verify that the process worked through by equality element-wise
# use allclose instead of array_equal because of tiny
# numerical precision errors
np.allclose(sqrtB @ sqrtB.T, B)
# True
True
from graphbook_code import ohe_comm_vec

def lpm_from_sbm(z, B):
    """
    A function to produce a latent position matrix from a
    community assignment vector and a block matrix.
    """
    if not block_mtx_psd(B):
        raise ValueError("Latent position matrices require PSD block matrices!")
    # one-hot encode the community assignment vector
    C = ohe_comm_vec(z)
    # compute square root matrix
    sqrtB = np.linalg.cholesky(B)
    # X = C*sqrt(B)
    return C @ sqrtB

# make a community assignment vector for 25 nodes / community
nk = 25
z = np.repeat([1, 2], nk)

# latent position matrix for an equivalent RDPG
X = lpm_from_sbm(z, B)
from graphbook_code import generate_sbm_pmtx

# generate the probability matrices for an RDPG using X and SBM
P_rdpg = X @ X.T
P_sbm = generate_sbm_pmtx(z, B)

# verify equality element-wise
np.allclose(P_rdpg, P_sbm)
# True
True
import numpy as np
from graspologic.simulations import sample_edges
from graphbook_code import heatmap, plot_vector, \
    generate_sbm_pmtx

def dcsbm(z, theta, B, directed=False, loops=False, return_prob=False):
    """
    A function to sample a DCSBM.
    """
    # uncorrected probability matrix
    Pp = generate_sbm_pmtx(z, B)
    theta = theta.reshape(-1)
    # apply the degree correction
    Theta = np.diag(theta)
    P = Theta @ Pp @ Theta.transpose()
    network = sample_edges(P, directed=directed, loops=loops)
    if return_prob:
        network = (network, P)
    return network
# Observe a network from a DCSBM
nk = 50  # students per school
z = np.repeat([1, 2], 50)
B = np.array([[0.6, 0.2], [0.2, 0.4]])  # same probabilities as from SBM section
theta = np.tile(np.linspace(1, 0.5, nk), 2)
A, P = dcsbm(z, theta, B, return_prob=True)

# Visualize

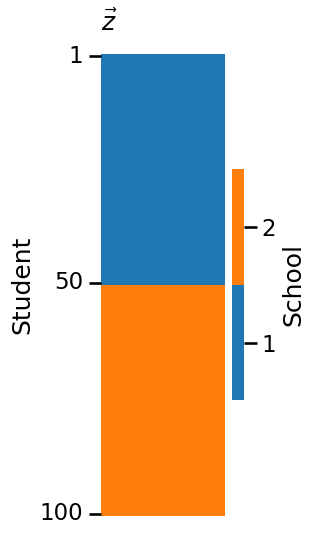

plot_vector(z, title="$\\vec z$", legend_title="School", color="qualitative",
            ticks=[0.5, 49.5, 99.5], ticklabels=[1, 50, 100],
            ticktitle="Student")

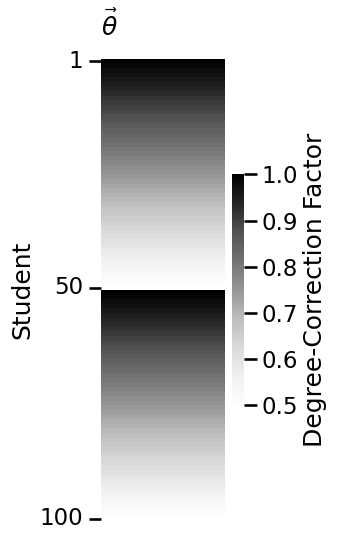

plot_vector(theta, title="$\\vec \\theta$",
            legend_title="Degree-Correction Factor",
            ticks=[0.5, 49.5, 99.5], ticklabels=[1, 50, 100],
            ticktitle="Student")

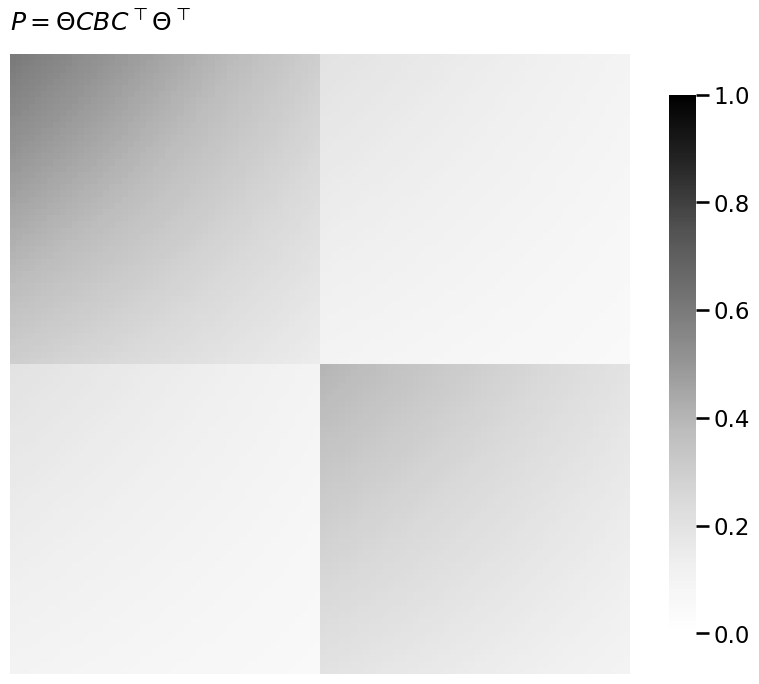

heatmap(P, title="$P = \\Theta C B C^\\top \\Theta^\\top$", vmin=0, vmax=1)

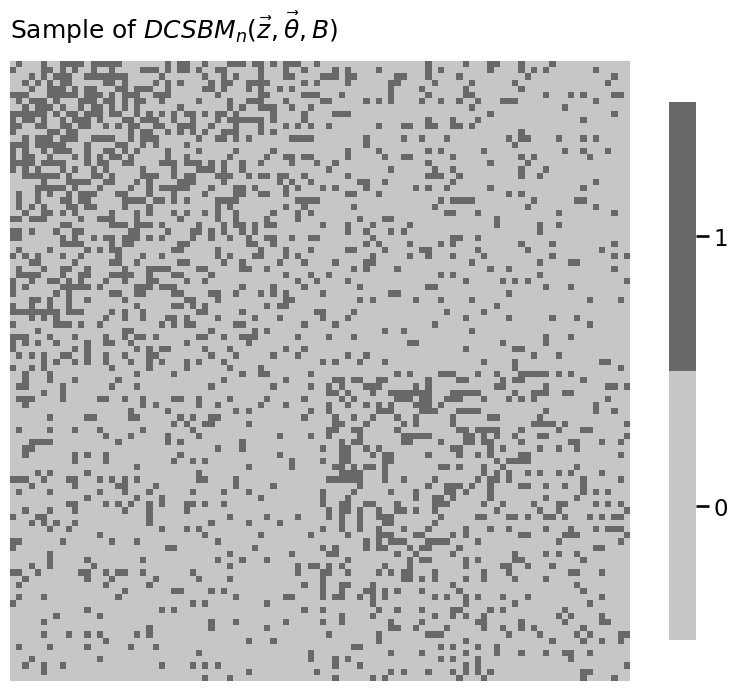

heatmap(A.astype(int), title="Sample of $DCSBM_n(\\vec z, \\vec \\theta, B)$")
<Axes: title={'left': 'Sample of $DCSBM_n(\\vec z, \\vec \\theta, B)$'}>
../../_images/0640e865be3685118a591fc8bca6427341e9064f606dae4655507a2bc3cb1d40.png ../../_images/4b22606e4427fb689c44cfc41d686186ac232c997d1e222987cfc40837c5fb82.png ../../_images/66f672e8ceadd920c12386c5bd760e6a7e7c3399fa82400372812471f4416928.png ../../_images/359fcbe6e770ac4a86b6d7f854126ae77d0fb167c46d9824cd222f254b0c9138.png
import numpy as np

n = 100
Z = np.ones((n, n))
for i in range(0, int(n / 2)):
    Z[int(i + n / 2), i] = 3
    Z[i, int(i + n / 2)] = 3
Z[0:50, 0:50] = Z[50:100, 50:100] = 2
np.fill_diagonal(Z, 0)
from graphbook_code import heatmap

labels = np.repeat(["L", "R"], repeats=n/2)

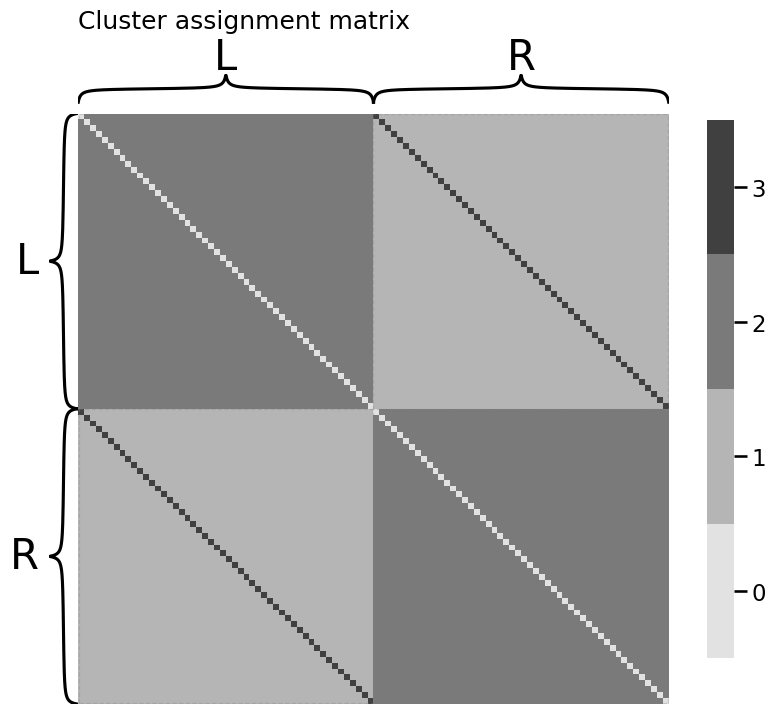

heatmap(Z.astype(int), title="Cluster assignment matrix",
        inner_hier_labels=labels)
<Axes: title={'left': 'Cluster assignment matrix'}>
../../_images/5748c840f247de447fc0772cff24e0bdc6c6cfb9297cb2ae0793ec4135801fcc.png
from graphbook_code import siem, plot_vector

p = np.array([0.1, 0.3, 0.8])
A = siem(n, p, Z)

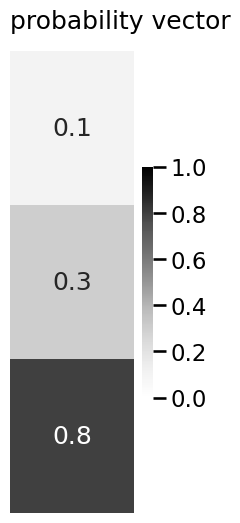

plot_vector(p, title="probability vector", vmin=0, vmax=1, annot=True)

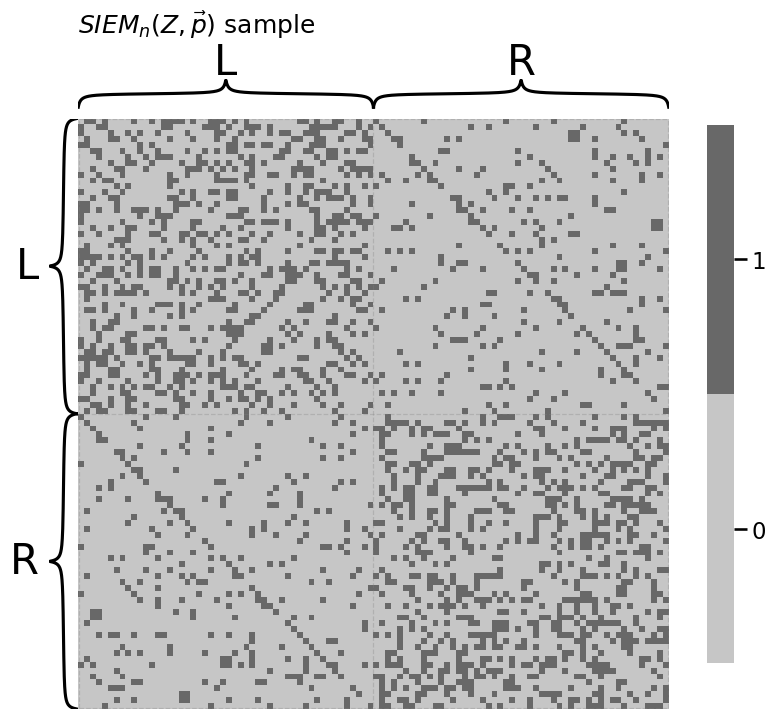

heatmap(A.astype(int), title="$SIEM_n(Z, \\vec p)$ sample",
        inner_hier_labels=labels)
<Axes: title={'left': '$SIEM_n(Z, \\vec p)$ sample'}>
../../_images/720f01fdd2fa181dbcaf351875d3d616ed4d9158708f1aa9dfb51ab7090c68ff.png ../../_images/38648143832583e3b5da78e6389a32f8f499bdd6e0f37a34077c3487d98a6ac8.png
from graspologic.simulations import sbm
import numpy as np
from graphbook_code import dcsbm
from sklearn.preprocessing import LabelEncoder

# Create block probability matrix B
K = 3
B = np.full(shape=(K, K), fill_value=0.15)
np.fill_diagonal(B, 0.4)

# degree-correct the different groups for linkedin
ml, admin, marketing = nks = [50, 25, 25]
theta = np.ones((np.sum(nks), 1))
theta[(ml):(ml + admin), :] = np.sqrt(2)

# our dcsbm function only works with communities encoded 1,2,...,K
# so we'll use a LabelEncoder to map labels to natural numbers
labels = np.repeat(["ML", "AD", "MA"], nks)
le = LabelEncoder().fit(labels)
z = le.transform(labels) + 1

# sample the random networks
A_facebook = sbm(n=nks, p=B)
A_insta = sbm(n=nks, p=B)
A_linkedin, P_linkedin = dcsbm(z, theta, B, return_prob=True)
from graphbook_code import generate_sbm_pmtx, heatmap

# we already returned P_linkedin for the linkedin
# probability matrix from dcsbm() function
P_facebook_insta = generate_sbm_pmtx(z, B)

# when plotting for comparison purposes, make sure you are
# using the same scale from 0 to 1

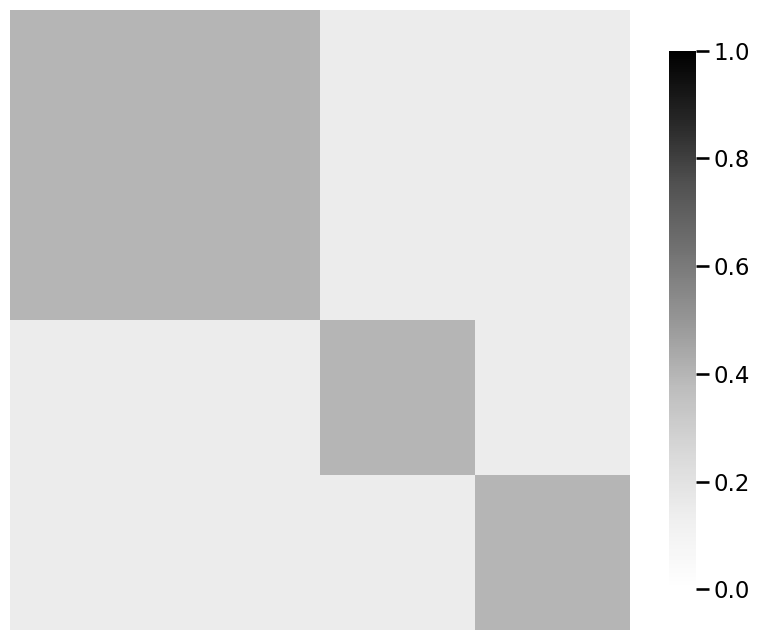

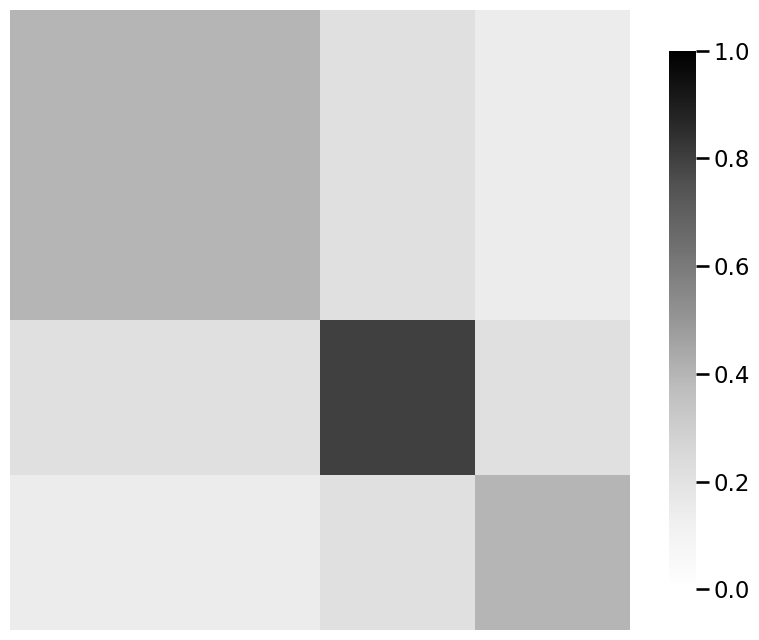

heatmap(P_facebook_insta, vmin=0, vmax=1)
heatmap(P_linkedin, vmin=0, vmax=1)

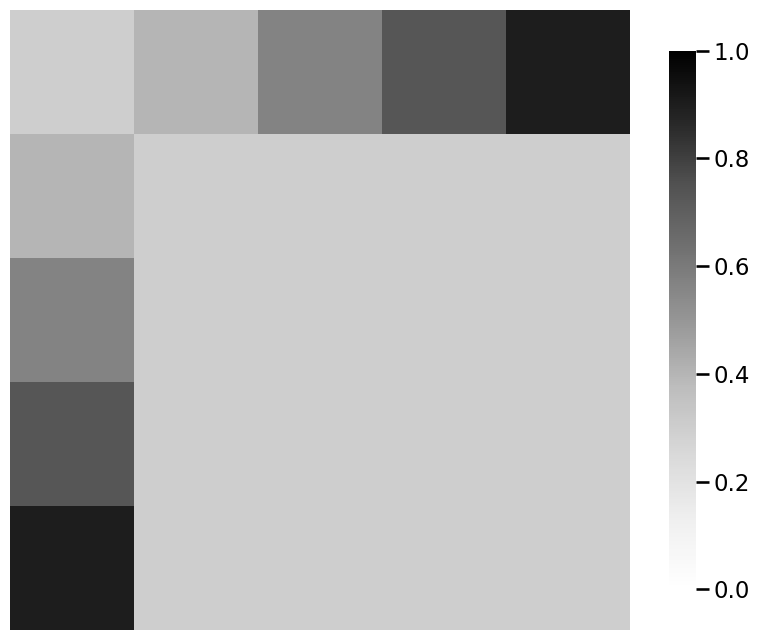

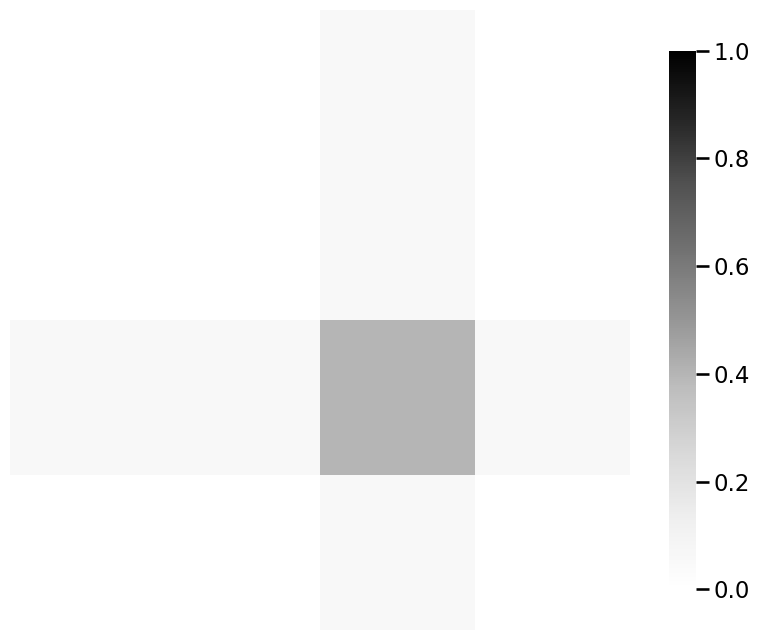

heatmap(P_linkedin - P_facebook_insta, vmin=0, vmax=1)
<Axes: >
../../_images/e1c53934529f49c6b8fcbd4c27aabee775cbcb5f986458e671867ed23f1fcfb1.png ../../_images/60b3bd8ae288188aef613814246a36b3f108fce6562e1a39bc924451f43e3e9e.png ../../_images/a17b900c9f3e06af05f36252fb0d51462ae4ea03a849a4b9c6bccc9ebae6481c.png
from graspologic.embed import MultipleASE as mase
from graphbook_code import lpm_heatmap

embedder = mase(n_components=3, svd_seed=0)

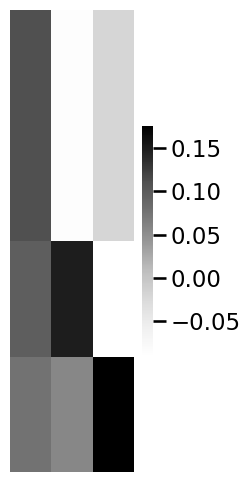

# obtain shared latent positions
S = embedder.fit_transform([P_facebook_insta, P_facebook_insta, P_linkedin])

lpm_heatmap(S)
<Axes: >
../../_images/78d7d680a674bd831a4797586621a2043630a55fd11b21a1ee9fea71ca9cf3b2.png
import matplotlib.pyplot as plt

R_facebook = embedder.scores_[0]
R_insta = embedder.scores_[1]
R_linkedin = embedder.scores_[2]

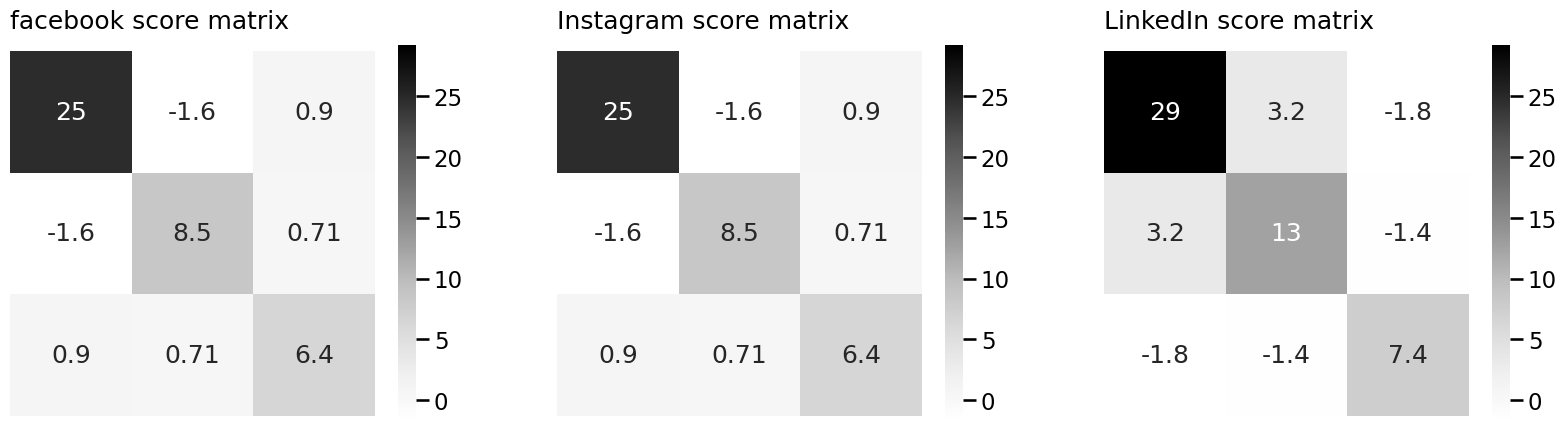

# and plot them
smin = np.min(embedder.scores_)
smax = np.max(embedder.scores_)

fig, axs = plt.subplots(1, 3, figsize=(20, 7))
heatmap(R_facebook, vmin=smin, vmax=smax, ax=axs[0], annot=True, title="facebook score matrix")
heatmap(R_insta, vmin=smin, vmax=smax, ax=axs[1], annot=True, title="Instagram score matrix")
heatmap(R_linkedin, vmin=smin, vmax=smax, ax=axs[2], annot=True, title="LinkedIn score matrix")
<Axes: title={'left': 'LinkedIn score matrix'}>
../../_images/5f299f8be61c1527dfde560092513596abae599838361cc3bea6087fa0918c4d.png
from graphbook_code import lpm_from_sbm
X_facebook_insta = lpm_from_sbm(z, B)
from graspologic.simulations import rdpg_corr

# generate the network samples
rho = 0.7
facebook_correlated_network, insta_correlated_network = rdpg_corr(
    X_facebook_insta, Y=None, r=rho
)

# the difference matrix
correlated_difference_matrix = np.abs(
    facebook_correlated_network - insta_correlated_network
)
# the total number of differences
correlated_differences = correlated_difference_matrix.sum()
rho_nil = 0.0
facebook_uncorrelated_network, insta_uncorrelated_network = rdpg_corr(
    X_facebook_insta, Y=None, r=rho_nil
)

# the difference matrix
uncorrelated_difference_matrix = np.abs(
    facebook_uncorrelated_network - insta_uncorrelated_network
)
# the total number of differences
uncorrelated_differences = uncorrelated_difference_matrix.sum()
import numpy as np
from graspologic.simulations import sample_edges

nodenames = [
    "SI", "L", "H/E",
    "T/M", "BS"
]

# generate probability matrices
n = 5  # the number of nodes
P_earthling = 0.3*np.ones((n, n))
signal_subnetwork = np.zeros((n, n), dtype=bool)
signal_subnetwork[1:n, 0] = True
signal_subnetwork[0, 1:n] = True
P_astronaut = np.copy(P_earthling)
P_astronaut[signal_subnetwork] = np.tile(np.linspace(0.4, 0.9, num=4), 2)

# sample two networks
A_earthling = sample_edges(P_earthling)
A_astronaut = sample_edges(P_astronaut)

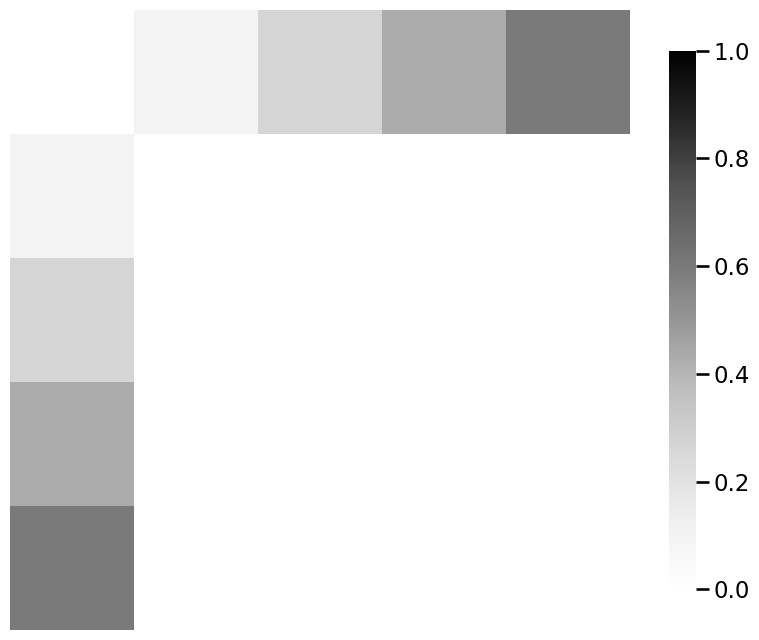

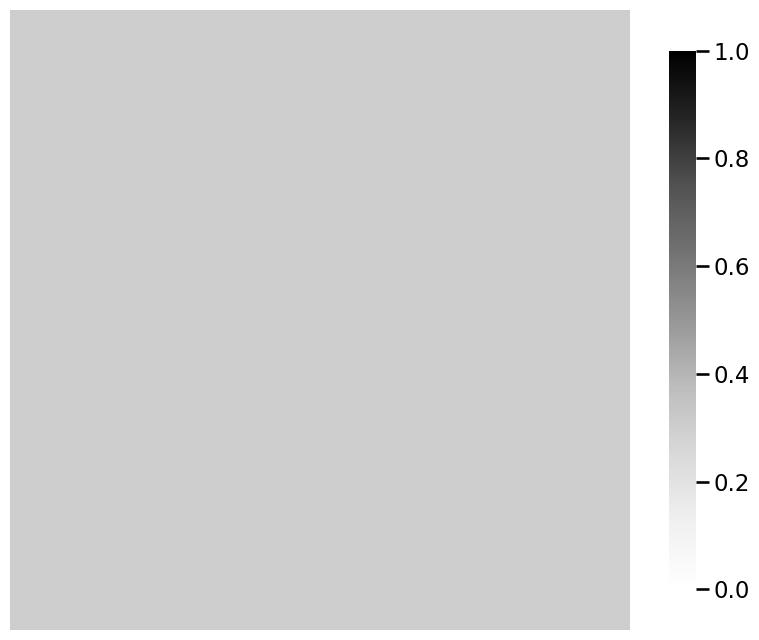

# plot probability matrices and their differences on the same scale
heatmap(P_earthling, vmin=0, vmax=1)
heatmap(P_astronaut, vmin=0, vmax=1)
heatmap(np.abs(P_astronaut - P_earthling), vmin=0, vmax=1)
<Axes: >
../../_images/e7ca8b7d5361e6bd9bb6ad92df166884db1733a1bdef76e0bc95b4876d86253a.png ../../_images/c42539d976b280a2fbeaaabc62181de87051ccd878682799df47c19f9b1a414f.png ../../_images/42e432c9f4c7f1f21f1a1984b0377fdfb07d4c2d4935a5c170d8e52ee025d85a.png
# plot the signal subnetwork
ax = heatmap(signal_subnetwork)
../../_images/8311542144939ca76baa452ad8c24c5285f8d42d57ecf0f151252497171f4e86.png
# sample the classes of each sample
M = 200  # the number of training and testing samples
pi_astronaut = 0.45
pi_earthling = 0.55
np.random.seed(0)
yvec = np.random.choice(2, p=[pi_earthling, pi_astronaut], size=M)

# sample network realizations given the class of each sample
Ps = [P_earthling, P_astronaut]

As = np.stack([sample_edges(Ps[y]) for y in yvec], axis=2)
